Oil Separator

Oil separator is used to separate lubricating oil from the oil-air mixture before removing the lubricating oil particles from compressed gas The compressor has no lack of oil because that oil separator separate compressor lubricating oil from the refrigerant so the oil is returned to the compressor crankcase.

FEATURES

• Made of high-quality steel plates, steel tubes and copper tubes;

• Gas-shielded welding is adopted to ensure welding performance;

• Professional powder coating can survive neutral salt spray test for more than 500 hours

OPERATION CONDITIONS

• Applicable Refrigerants: R410A, R32, R134a, R404A, R507, R290, R407C and R22, etc.

• Working Pressure：2.2MPa~4.5MPa；

• Medium Temperature：-30℃ ~ +120℃；

• Ambient Temperature：-20℃ ~ +55℃;

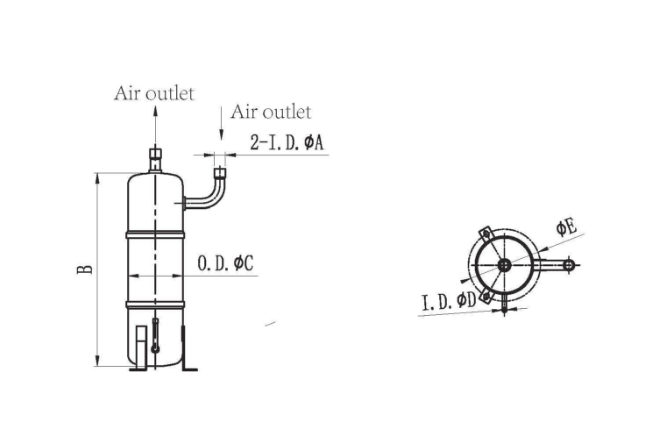

DIMENSIONS

Model	A	B	C	D	E	Weight	容积	Order Number
Model	mm	mm	mm	mm	mm	kg	L	Order Number
YF019102C	16.2	280	101.6	9.7	140	0.32	1.9	YF3500000305
YF050127C	22.15	447	127	9.7	168	5.88	5	YF3500001036

Model	A	B	C	D	Weight	Volume	Order Number
Model	mm	mm	mm	mm	kg	L	Order Number
YF002042	9.67	166	42	6.15	0.32	0.18	YF3500001229
YF005057	12.85	218	58	6.15	0.60	0.45	YF3500001045
YF010080	12.85	265	80	6.15	1.4	1.0	YF3500001202

Model	Volume	Dimensions（mm）			Size ofPort（φmm）
Model	L	Length	Width	Height	Inlet	Outlet
SYV-025	25	500	300	650	42	42
SYV-040	40	550	400	770	54	54
SYV-070	70	650	450	840	76	76
SYV-090	90	700	500	850	89	89
SYV-110	110	750	550	900	108	108
SYV-180	180	900	700	1150	133	133
