![<!--<$[标题]>begin-->Stamped Tee<!--<$[标题]>end-->](/picture/0/34a48b617eba46d3bbe0627f57e71134.png)
Stamped tee is mainly used for division, distribution and connection in room, module machine, VRV , unit machine air conditioning systems
Material：TP2
Maximum Working Pressure：4.5Mpa
Medium Temperature：-40℃~130℃
Applicable Refrigerants:R410A, R32, R134a, R404A, R507, R290, R407C, R22
Purpose: lt is mainly used for division, distribution and connection in room, module machine, VRV , unit machine air conditioning systems

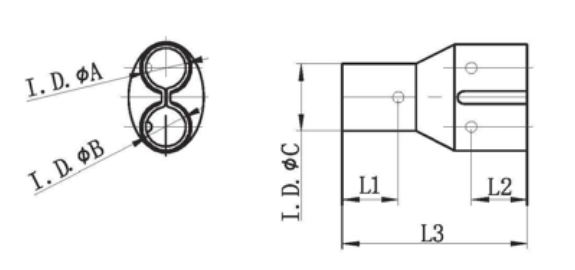

DIMENSIONS
SPECIFICATION (unit：mm)
Model |
| |||
A | B | C | D | |
1 | Φ9.6 | Φ7.1 | Φ7.1 | 40 |
2 | Φ7.1 | Φ2.5 | Φ7.1 | 35 |
3 | Φ9.7 | Φ9.7 | Φ9.7 | 40 |
4 | Φ6.1 | Φ6.1 | Φ6.1 | 35 |
5 | Φ6.35 | Φ2.8 | Φ2.8 | 65 |
6 | Φ6.35 | Φ8 | Φ3.2 | 60 |
7 | Φ19.1 | Φ12.8 | Φ12.8 | 79 |
8 | Φ8 | Φ3.2 | Φ6.2 | 36 |
9 | Φ9.6 | Φ6.5 | Φ6.5 | 50 |
10 | Φ12.8 | Φ9.6 | Φ6.5 | 40 |
11 | Φ6.35 | Φ8 | Φ3.2 | 40 |
12 | Φ12.9 | Φ12.9 | Φ12.9 | 55 |
13 | Φ6.5 | Φ6.5 | Φ6.5 | 36.5 |
14 | Φ6.35 | Φ6 | Φ6.35 | 60 |
15 | Φ9.6 | Φ9.6 | Φ6.1 | 50 |
Note: The products can be customized by drawings
